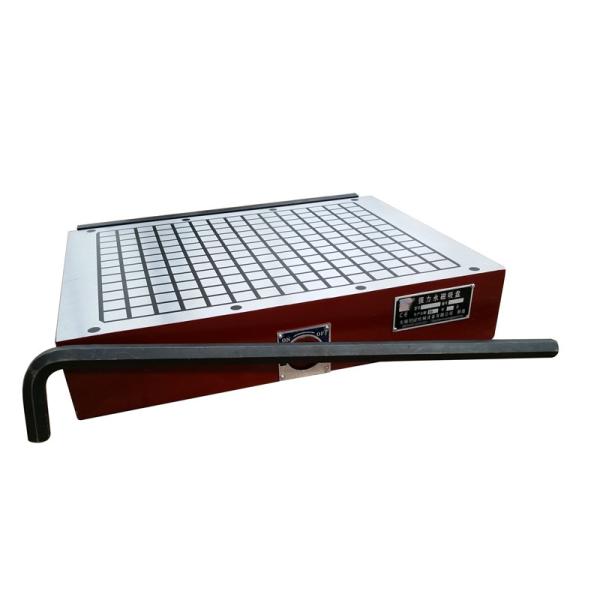

    Red 300*800mm Permanent Magnetic Table For Milling Machine

    Ask Lasest Price
    Brand Name : JYC
    Model Number : X71
    Certification : CE, ISO
    Price : USD 200-500
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100 sets per month
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Red 300*800mm Permanent Magnetic Table For Milling Machine

    X91 Powerful electro magnetic chuck


    Powerful Energy Saving Heavy Duty Surface Grinder Magnetic Chuck For Cnc Milling Machine Workholding


    Product Parameters


    Red 300*800mm Permanent Magnetic Table For Milling Machine Red 300*800mm Permanent Magnetic Table For Milling Machine


    Spec sheet:
    ModelDimensions (MM)Polar Distance (MM)Voltage (V)Current (A)Power (W)Net Weight (KG)Overall size (CM)
    LengthBreadthHeight
    X91 200*5605602001201001101.51657976*30*20
    X91 200*6006002001201001101.81988280*30*20
    X91 300*6006003001201101102.224213280*40*20
    X91 300*6806803001201101102.527515688*40*20
    X91 300*8008003001251101103330202100*40*20
    X91 300*100010003001251101103.3363226120*40*20
    X91 400*8008004001251201103.5385252100*50*20
    X91 400*100010004001251201104.2462310120*50*20
    X91 500*100010005001281201105.5605360120*60*30
    X91 500*120012005001281201106.2682420140*60*30
    X91 500*150015005001281201106.5748520170*60*30
    X91 600*100010006001301201105.6616420120*70*30
    X91 600*120012006001301201106660520140*70*30
    X91 600*150015006001301201106.6726650170*70*30
    X91 600*180018006001301201107.5825720200*70*30
    X91 800*100010008001351221106660580120*90*30
    X91 800*150015008001351221107.2792890170*90*30
    X91 800*1800180080013512211088801050200*90*30
    Note: Other specifications can be customized ,please call for further information.
    Suggestion: You can choose two installation methods (    through hole/pressing block).

    Product Introduction


    X91 powerful electronic controlled magnetic chuck
    Product introduction: X91 Powerful electronic controlled magnetic chuck is widely used in all kinds of milling and planing machines (Vertical milling machine, CNC milling machine, planer, planomiller, etc.), With suction ≥ 180 N/cm2, it can make the heavy cutting more effective. Besides, X91 can prevent tool magnetization, improve the machining precision, prolong tool life and save the clamping time more effectively. X91 is a good choice if you want to improve production efficiency and reduce labor intensity of workers.


    Permanent Magnetic ChuckElectromagnetic Magnetic ChuckElectro Permanent Magnetic Chuck
    Magnetic SourceNdfebCoil and CoreNdfeb Anico
    Magnetic Force PrincipleInternal Magnetic FieldsConstant CurrentConversion by Electronic Control Device
    UsageManualElectric Control DeviceElectric Control Device
    PrecisionAbout 0.02-0 05 (the Error Increased Bysizes)About 0.01-0.02About 0 002-0.005
    Potential RiskProne to Security IncidentsProne to Security IncidentsAbsolute Safety
    Magnetic RegulationUnable to AdjustElectric Control Device to AdjustsuctionElectric Control Device to Adjust Suction
    SuctionSmallMediumLarge
    Residual MagnetismMore Remanence, Demagnetiz Ation DevicerequiredLess Remanence, Demagnetizationdevice RequiredAutomatic Demagnetiz Ation Withoutdemagnetization Device
    Thermal DeformationNoContinuous Power On, Heat Generationand Thermal DeformationNo
    Applicable WorkpieceThin and Small WorkpiecesThin and Small, Medium SizedworkpiecesAll Kinds of Workpieces
    ApplicationMainly Used for Grinding MachineMainly Used for Grinding MachineFor Grinding/milling/lathe Manchine and Soon.
    AccessoriesNoElectric Control DeviceElectric Control Device
    Serive Life3-5 Years6-10 Years20 Years

    Red 300*800mm Permanent Magnetic Table For Milling MachineRed 300*800mm Permanent Magnetic Table For Milling Machine
