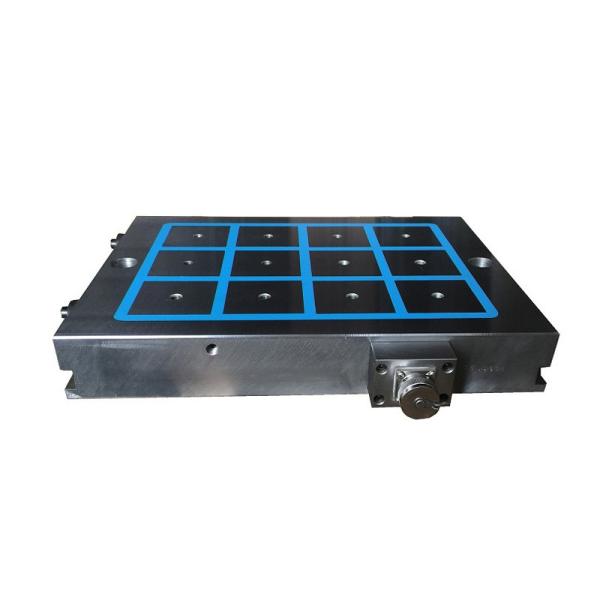

Electro permanent magnetic chuck for milling machine
Product Introduction
X61 standard electronic controlled permanent magnetic chuck is a
new type of magnetic chuck, which use electric pulse to control its
magnetism . No electricity is needed when X61 at work, only except
in the first 1-2 seconds of magnetization and demagnetization
process. Magnetism will not lose even in the case of a sudden power
cut, and the work piece will not move. X61 has the convenience of
"Electronic controlled magnetic chuck" and the safety precision of
"Permanent magnet chuck", which is used for high precision milling
and grinding.
| Model | Dimensions (MM) | Polar Distance (MM) | Polar number | Net Weight (KG) |
| Length | Breadth | Height | 70*70 | 50*50 |
| X61-250*250 | 250 | 250 | 68 | 70*70/50*50 | 4 | 9 | 31 |
| X61-250*300 | 300 | 250 | 6 | 12 | 40 |
| X61-300*300 | 300 | 300 | 9 | 16 | 48 |
| X61-300*400 | 400 | 300 | 12 | 20 | 64 |
| X61-300*500 | 500 | 300 | 15 | 28 | 80 |
| X61-300*600 | 600 | 300 | 18 | 32 | 96 |
| X61-300*800 | 800 | 300 | 24 | 48 | 128 |
| X61-300*1000 | 1000 | 300 | 30 | 60 | 160 |
| X61-400*400 | 400 | 400 | 16 | 25 | 85 |
| X61-400*500 | 500 | 400 | 20 | 35 | 105 |
| X61-400*600 | 600 | 400 | 24 | 40 | 128 |
| X61-400*800 | 800 | 400 | 32 | 60 | 170 |
| X61-400*1000 | 1000 | 400 | 40 | 75 | 210 |
| X61-500*500 | 500 | 500 | 80 | 25 | 49 | 155 |
| X61-500*600 | 600 | 500 | 30 | 56 | 188 |
| X61-500*800 | 800 | 500 | 40 | 84 | 250 |
| X61-500*1000 | 1000 | 500 | 50 | 105 | 310 |
| X61-600*600 | 600 | 600 | 36 | 72 | 225 |
| X61-600*800 | 800 | 600 | 48 | 96 | 300 |
| X61-600*1000 | 1000 | 600 | 60 | 120 | 375 |
| X61-600*1200 | 1200 | 600 | 72 | 144 | 450 |
| X61-600*1500 | 1500 | 600 | 90 | 176 | 560 |
Product Details
X61 Powerful Electro Permanent Magnetic Chuck clamping Force Up to
More 20 Kg / Cm 2
Save More Than 95% El Ectricity
magnetism Remain 30 Years Even when Power Off
increase Efficiency by More Than 60%
Easy to Use And maintain
Product Accessories
Magnetic Blocks
Use Magnetic Blocks to Machines 6 Sides of the Workpiece at Same
Time. Blanks and Irregular
Workpieces Could Be Adjusted to Adapt to Their Roughness by Sliding
Up and Down the Elastic Blocks, Toprovide Larger Magnetic Force.
More processing schemes can be provided by using different magnetic
guide blocks pardigm as below
PULSE CONTROLLER
Product introduction:
safety protection: The spindle linkage can be realized by unlocking
the input contact signal and themagnetized output contact. lt is
equipped with adjustable magnetoelectric current (or short
circuit)protection and undercurrent (or circuit break) alarm
functions.
Simple operation: all setting parameters and running state can be
monitored through the host panel, andthe power frequency can be
automatically tracked;Flexible configuration, easy to use.
control interface: it is equipped with a variety of alternative
control interfaces, which can satisfy allkinds of on-line control
requirements. It also has alternative control (remote) or PLC
interfaces.
Why Choose Us?
Safety, Magnetism Continue 30years Without Electric. Energy saving,
Above 95%.
The Clamping Force Can Be As nigh As More Than 20 Kg/cm2.
High Efficiency, Improve The efficiency of More Than 60%.
Very Easy to Use, Fast, Durable, Maintenance Free.
MAGNETIC CLAMPING VS TRADITIONAL CLAMPING
| Suitable for clamping of various workpieces without deformation | Clamping tends to deform the workpiece |
| Uniform suction, improve processing accurcy | During the machining process, the workpiece generates vibrations,
which reduces the machining accuracy and the surface flatness. |
| Accurate positioning, convenient clamping | Difficult clamping and inaccurate positioning reduce work
efficiency |
| No interference position, workpieces can be f machined on five
sides at one time | clamping with processing interference positions, workpieces can not
be processed in one operation |
Processing Technology
1. Cnc Flame Cutting
2. Gantry Milling
3. Cnc Processing Centor
6. Coils and Magnetic Steel Assembly
5. Deburring and Cleaning
4. Drilling Machine
7. Magnetic Steel Commissioning
8. Electrical with Stand Voltage Detection
9. Epoxy Potting
10. Suction and Pull-out Force Test
11. Surface Grinder Finish Machining
12. Surface Magnetic Remanence (inspection)
13. Finished Product Electrical with Stand Voltage Detection
14. Finished Product Appearance Inspection
15. Packing List Inspection
16. Finished Package
