hx Milling Magnetic Chuck
Product Parameters
| Model | Clamping force (KGF) | Min thickness of workpiece(mm) | Dimension(mm) | Net weight (KG) |
| L | B | H |
| HX-50 | 500 | 15 | 145 | 70 | 90 | 6.5 |
| HX-75 | 1000 | 15 | 175 | 70 | 90 | 8.5 |
| HX-120 | 1500 | 20 | 193 | 108 | 112 | 17 |
| HX-210 | 2000 | 30 | 224 | 133 | 122 | 29 |

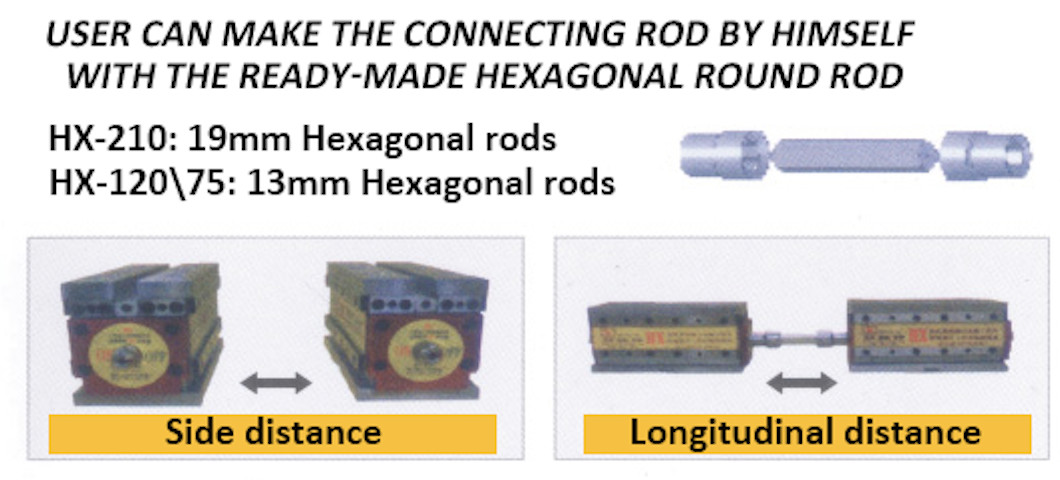

| Model | HX-210 | HX-120 | HX-75 | HX-50 |
| Side distance | Min 100 | 100 | 60 | 25 |
| Max 1200 | 1000 | 600 | 400 |
| Longitudinal distance | Min 80 | 70 | 40 | 40 |
| Max 500 | 500 | 300 | 200 |
CHARACTERISTIC
1. Suitable for vertical and horizontal CNC integrated
cutting machine and milling machine, fast clamping workpiece,2.
Five sides of cutting, drilling, tapping, milling groove
to complete at one time, save processing flow and reducethe
repeated tolerance of too many processing procedures,and improve
work efficiency, greatly reduce the processing cost3. The quantity,
position and spacing of magnetic workbenchescan be freely combined
according to the size of the workpiece.4. Before using, you can
fine grind the "permeability soft claw"by yourself to increase the
precision.
USAGE
1. Suitable for cutting medium and small size workpieces.
2. Replacement magnetizing soft claw can be used
formulti-functional workpiece clamping processing.
3. Min size of workpiece should be more than 2 worktables.
4. This is not suitable for clamping small workpieces.
NOTICE
1. Before clamping, please confirm that it has been transferredto
the "on" position.
2. Principle of this magnetic worktable is to convert magneticpole
N.S. into magnetic field. Please place the workpiece in themiddle
of both sides of the magnetic worktable.
If the workpiece is placed on one side, it cannot be held.
3. It's not suitable for small workpieces or non- magnetic
materials, such as copper, aluminum, stainless steel and alloy.The
minimum contact 'area of workpieces and magnetic tableshall be as
large as total workarea of two magnetic tables.
