X91 Powerful electro magnetic chuck

Product Parameters

	Permanent Magnetic Chuck	Electromagnetic Magnetic Chuck	Electro Permanent Magnetic Chuck
Magnetic Source	Ndfeb	Coil and Core	Ndfeb Anico
Magnetic Force Principle	Internal Magnetic Fields	Constant Current	Conversion by Electronic Control Device
Usage	Manual	Electric Control Device	Electric Control Device
Precision	About 0.02-0 05 (the Error Increased Bysizes)	About 0.01-0.02	About 0 002-0.005
Potential Risk	Prone to Security Incidents	Prone to Security Incidents	Absolute Safety
Magnetic Regulation	Unable to Adjust	Electric Control Device to Adjustsuction	Electric Control Device to Adjust Suction
Suction	Small	Medium	Large
Residual Magnetism	More Remanence, Demagnetiz Ation Devicerequired	Less Remanence, Demagnetizationdevice Required	Automatic Demagnetiz Ation Withoutdemagnetization Device
Thermal Deformation	No	Continuous Power On, Heat Generationand Thermal Deformation	No
Applicable Workpiece	Thin and Small Workpieces	Thin and Small, Medium Sizedworkpieces	All Kinds of Workpieces
Application	Mainly Used for Grinding Machine	Mainly Used for Grinding Machine	For Grinding/milling/lathe Manchine and Soon.
Accessories	No	Electric Control Device	Electric Control Device
Serive Life	3-5 Years	6-10 Years	20 Years

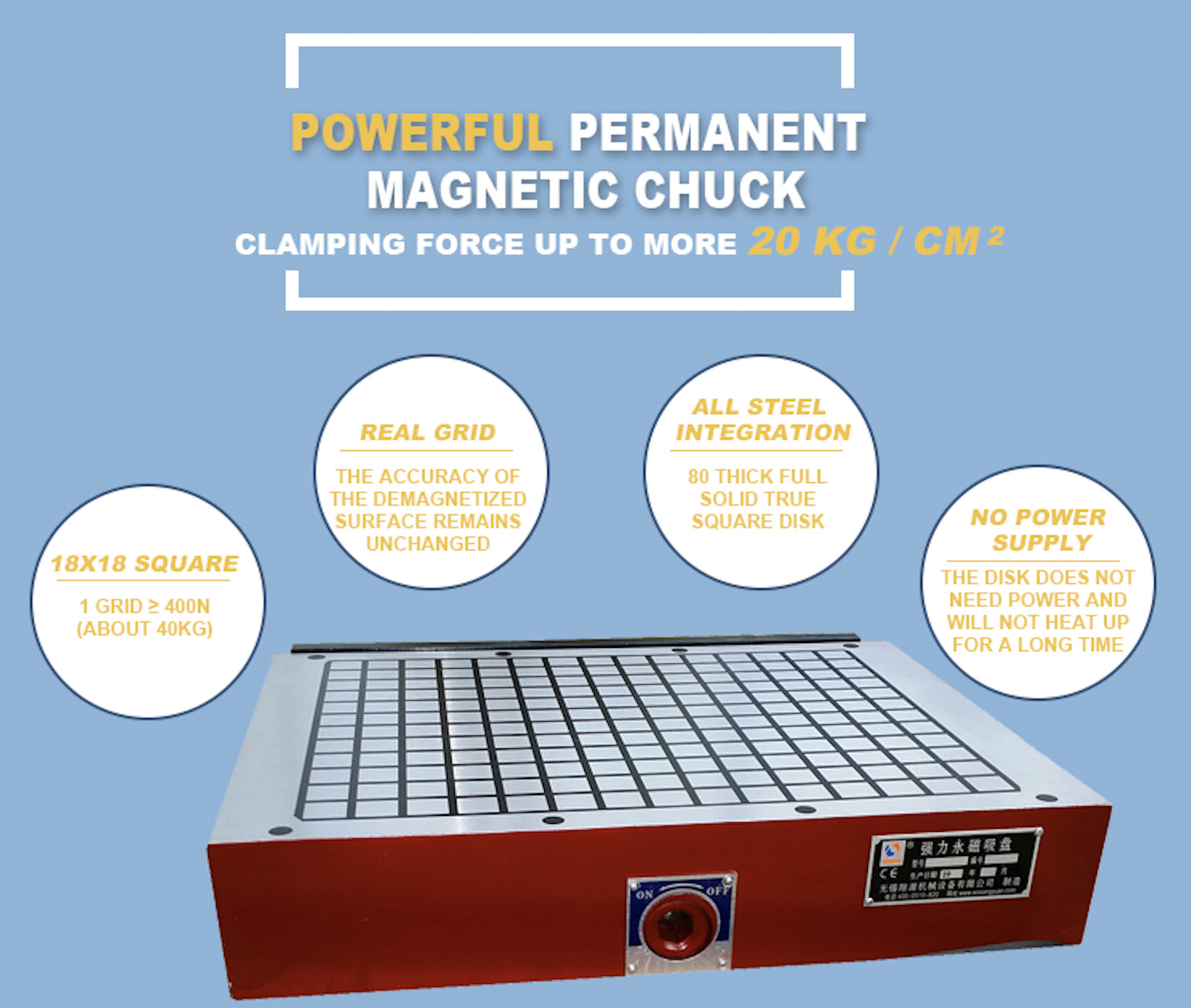

Powerful Permanent Magnetic Chuck Clamping Force Up to More 20 Kg / Cm 2

18x18 Square

1 Grid 2400n(about 40kg)

Real Grid

The Accuracy Of the Demagnetized surface Remains unchanged

All Steel integration

80 Thick Full solid True square Disk

No Power supply

the Disk Does Not need Power And will Not Heat Up for a Long Time

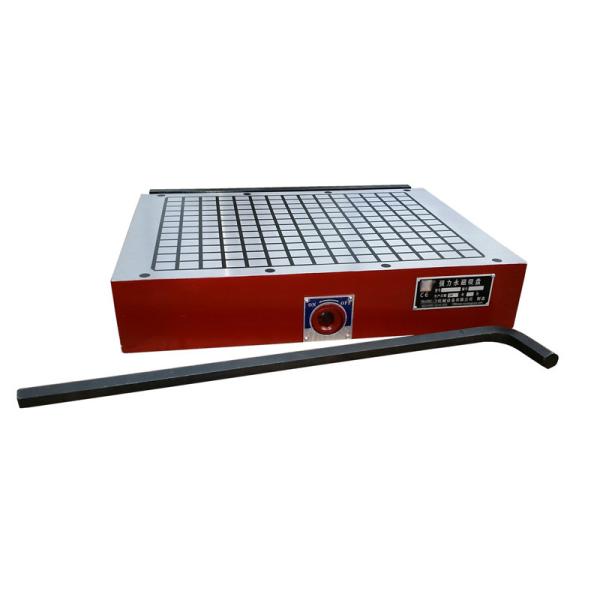

True square disk

We produce 80 thick solid true square disk with the same precision of demagnetizing surface.We promise to guarantee the quality for two years. Under normal use, if the magnetic force cannot be eliminated or the magnetic force becomes smaller within one year, our company will replace it for free! You can buy it at ease and use it comfortably.

Pseudo square disk

Some businesses deceive consumers for their interests. The so -called 90 thick disk is only 70 thick, and the bottom is padded with 20mm high. This fake square disk is oK when it just receives the goods, but it will cause various problems for a while, such as unable to demagnetize, magnetic force becoming smaller, etc

As a professional designer and manufacturer of magnetic products over 10 years, JYC technology Co.,ltd is always providing customers appro-priate solutions to holding and lifting materialduring machining progressing.

The huge range of our magnetic products includeElectro magnetic chuck(EMC) series, Permanentmagnetic chuck(PMC) series, Electro permanentmagnetic chuck(EPMC) series, Electro magneticlifter (EML),.Permanent magnetic lifter(PM-L),Electro permanent magnetic lifter (EPML),Iron remover, Demagnetizer, etc.

Magnet is widely used in industries like metallurgy, machinery, shipbuilding, electric power, mine, automobile manufacturing, rail transportation and so on.

There is mainly 3 kinds of magnet, permanent magnet, electromagnet, permanent electromagnet. different magnet is suitable for different areas, and as a professional supplier of magnetic tools, JYC technology is is always providing customers appropriate solutions for our customers.
