XZ11 electronic controlled magnetic chuck for grinder
Application
* CNC machine tools and machining center:chess lattice and the
magnetic strip power sucker.
* Guide rail:super type.
* Lathe discal parts.
* Large steel plate swing and cutting machine.
* Ship and automobile industry:small size and mini type.
* Automatic fetching machine in production line.
* Closing device.
Product introduction:XZ11 is a a electronic controlled magnetic
chuck specially designed for knife grinder, which has uniform
suction and accurate positioning, XZ11 is suitable for all kinds of
knife grinders, such as wood_x001f_working knife grinder, paper
sharpener and so on.

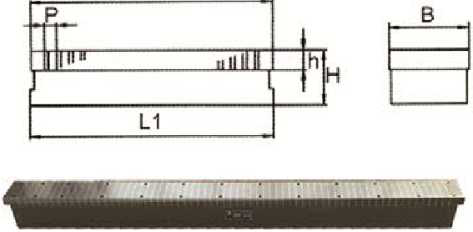

Specification sheet
| Model | Dimensions (MM) | Polar Distance (P) | Voltage (V) | Current (A) | Power (W) | Net Weight (KG) | Overall size (CM) |
| Length | Breadth | Height |
| XZ11-120*1400 | 1400 | 120 | 120 | 22 | 110 | 1.54 | 169 | 126 | 160*22*22 |
| XZ11-120*1600 | 1600 | 120 | 120 | 22 | 110 | 1.84 | 202 | 143 | 180*22*22 |
| XZ11-140*1380 | 1380 | 140 | 130 | 22 | 110 | 1.52 | 167 | 186 | 158*24*23 |
| XZ11-150*1400 | 1400 | 150 | 110 | 22 | 110 | 1.6 | 176 | 145 | 160*25*21 |
| XZ11-160*1400 | 1400 | 160 | 110 | 22 | 110 | 1.77 | 195 | 150 | 160*26*21 |
| XZ11-160*1600 | 1600 | 160 | 120 | 22 | 110 | 2.2 | 242 | 187 | 180*26*22 |
| XZ11-180*1000 | 1000 | 180 | 110 | 22 | 110 | 1 | 110 | 124 | 120*28*21 |
| XZ11-180*1500 | 1500 | 180 | 120 | 22 | 110 | 2 | 220 | 220 | 170*28*22 |
| XZ11-190*1680 | 1680 | 190 | 130 | 22 | 110 | 2.3 | 253 | 265 | 188*29*23 |
| XZ11-190*2200 | 2200 | 190 | 130 | 22 | 110 | 2.5 | 275 | 280 | 240*29*23 |
| XZ11-200*1000 | 1000 | 200 | 110 | 22 | 110 | 1.25 | 138 | 132 | 120*30*21 |
| XZ11-200*1470 | 1470 | 200 | 120 | 22 | 110 | 2.5 | 275 | 220 | 167*30*22 |
| XZ11-200*1550 | 1550 | 200 | 120 | 22 | 110 | 2.5 | 275 | 236 | 175*30*22 |
| XZ11-200*1600 | 1600 | 200 | 130 | 22 | 110 | 2.6 | 286 | 255 | 180*30*23 |
| XZ11-200*1760 | 1760 | 200 | 130 | 22 | 110 | 2.65 | 291 | 280 | 196*30*23 |
| XZ11-200*2270 | 2270 | 200 | 130 | 22 | 110 | 2.8 | 308 | 330 | 247*30*23 |
Note: Other specifications can be customized ,please call for further information.
Suggestion: You can choose two installation methods (through hole/pressing block). |
|
Company Profile
Magnet is widely used in industries like metallurgy, machinery,
shipbuilding, electric power, mine, automobile manufacturing, rail
transportation and so on.
There is mainly 3 kinds of magnet, permanent magnet, electromagnet,
permanent electromagnet. different magnet is suitable for different
areas, and as a professional supplier of magnetic tools, JYC technology is is always providing customers appropriate solutions for our
customers.
Packing&Delivery
To better ensure the safety of your goods, professional,
environmentally friendly, convenient and efficient packaging
services will be provided. Each chuck will be well protected by
wooden boxs.
FAQ
Q: Are you manufactory or trade company.
A: We are both factory and trade company, we have lots of
Cooperation factory with different quality and prices, just tell us
your need, there is always a product suitable for you.
Q: Where do you located:
A: JYC technology Co.,Ltd. located at Wuxi City, Jiangsu Province,
1 hour by fast rail way to Shanghai City.
Q: Production time:
A: Normally,We'll have regular items in stock, customized products
will take 7-14 work days.
Q: Payment term:
A: TT, credit card, L/C, Western Union, Paypal and so on, we accept
all kinds of payment.
Q: What's your work time:
A: Normally, our work time is 9: 00 AM to 17: 00 PM Beijing time,
but if you have emergency, Please contact us freely at any time.
Our salesman will sulove your problem as soon as possible.
