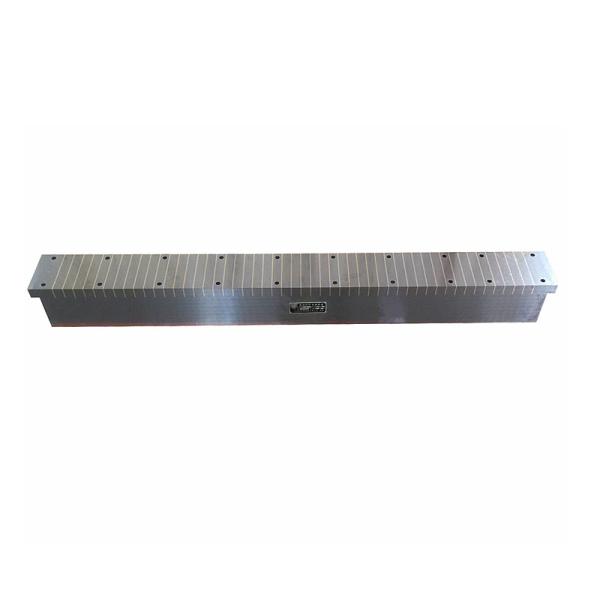

XZ11 electronic controlled magnetic chuck for grinder
Electromagnetic permanent magnet fixture in the suction clamping
process, but there is magnetic force on the surface of the fixture,
the other surface does not exist magnetic flux leakage phenomenon,
not only the tool without any effect, and remove the workpiece, the
fixture and the workpiece will not exist remanence , Because the
system has an internal electro mechanical demagnetization device,
the workpiece and fixture can be automatically demagnetized.
Product introduction:XZ11 is a a electronic controlled magnetic
chuck specially designed for knife grinder, which has uniform
suction and accurate positioning, XZ11 is suitable for all kinds of
knife grinders, such as wood_x001f_working knife grinder, paper
sharpener and so on.
Specification sheet
| Model | Dimensions (MM) | Polar Distance (P) | Voltage (V) | Current (A) | Power (W) | Net Weight (KG) | Overall size (CM) |
| Length | Breadth | Height |
| XZ11-120*1400 | 1400 | 120 | 120 | 22 | 110 | 1.54 | 169 | 126 | 160*22*22 |
| XZ11-120*1600 | 1600 | 120 | 120 | 22 | 110 | 1.84 | 202 | 143 | 180*22*22 |
| XZ11-140*1380 | 1380 | 140 | 130 | 22 | 110 | 1.52 | 167 | 186 | 158*24*23 |
| XZ11-150*1400 | 1400 | 150 | 110 | 22 | 110 | 1.6 | 176 | 145 | 160*25*21 |
| XZ11-160*1400 | 1400 | 160 | 110 | 22 | 110 | 1.77 | 195 | 150 | 160*26*21 |
| XZ11-160*1600 | 1600 | 160 | 120 | 22 | 110 | 2.2 | 242 | 187 | 180*26*22 |
| XZ11-180*1000 | 1000 | 180 | 110 | 22 | 110 | 1 | 110 | 124 | 120*28*21 |
| XZ11-180*1500 | 1500 | 180 | 120 | 22 | 110 | 2 | 220 | 220 | 170*28*22 |
| XZ11-190*1680 | 1680 | 190 | 130 | 22 | 110 | 2.3 | 253 | 265 | 188*29*23 |
| XZ11-190*2200 | 2200 | 190 | 130 | 22 | 110 | 2.5 | 275 | 280 | 240*29*23 |
| XZ11-200*1000 | 1000 | 200 | 110 | 22 | 110 | 1.25 | 138 | 132 | 120*30*21 |
| XZ11-200*1470 | 1470 | 200 | 120 | 22 | 110 | 2.5 | 275 | 220 | 167*30*22 |
| XZ11-200*1550 | 1550 | 200 | 120 | 22 | 110 | 2.5 | 275 | 236 | 175*30*22 |
| XZ11-200*1600 | 1600 | 200 | 130 | 22 | 110 | 2.6 | 286 | 255 | 180*30*23 |
| XZ11-200*1760 | 1760 | 200 | 130 | 22 | 110 | 2.65 | 291 | 280 | 196*30*23 |
| XZ11-200*2270 | 2270 | 200 | 130 | 22 | 110 | 2.8 | 308 | 330 | 247*30*23 |
Note: Other specifications can be customized ,please call for further information.
Suggestion: You can choose two installation methods (through hole/pressing block). |
|
Company Profile
Magnet is widely used in industries like metallurgy, machinery,
shipbuilding, electric power, mine, automobile manufacturing, rail
transportation and so on.
There is mainly 3 kinds of magnet, permanent magnet, electromagnet,
permanent electromagnet. different magnet is suitable for different
areas, and as a professional supplier of magnetic tools, JYC technology is is always providing customers appropriate solutions for our
customers.
Packing&Delivery
To better ensure the safety of your goods, professional,
environmentally friendly, convenient and efficient packaging
services will be provided. Each chuck will be well protected by
wooden boxs.
FAQ
Q: Are you manufactory or trade company.
A: We are both factory and trade company, we have lots of
Cooperation factory with different quality and prices, just tell us
your need, there is always a product suitable for you.
Q: Where do you located:
A: JYC technology Co.,Ltd. located at Wuxi City, Jiangsu Province,
1 hour by fast rail way to Shanghai City.
Q: Production time:
A: Normally,We'll have regular items in stock, customized products
will take 7-14 work days.
Q: Payment term:
A: TT, credit card, L/C, Western Union, Paypal and so on, we accept
all kinds of payment.
Q: What's your work time:
A: Normally, our work time is 9: 00 AM to 17: 00 PM Beijing time,
but if you have emergency, Please contact us freely at any time.
Our salesman will sulove your problem as soon as possible.
