X11 XM11 Dense electronic controlled magnetic chuck
Product introduction: XM11 Dense electronic controlled magnetic
chuck is mainly used to hold small or thin work piece for
machining. AS an enhanced ECMC, its dense magnetic flux line makes
suction more uniform and strong. Suction ≥ 150N/cm2, with high
precision,high rigidity and small thermal deformation.
Specification sheet
| Type A | | Type B | | | |
| Spec sheet: |

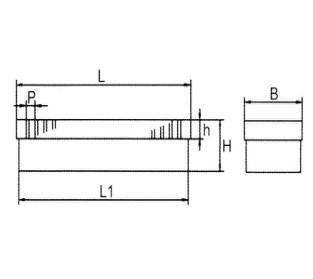

| Model | Dimensions (MM) | Polar Distance (P) | Voltage (V) | Current (A) | Power (W) | Net Weight (KG) | Overall size (CM) |
| Length | Breadth | Height |
| XM11 150*300 | 300 | 150 | 110 | 5 | 110 | 0.68 | 75 | 23 | 50*25*20 |
| XM11 150*350 | 350 | 150 | 110 | 5 | 110 | 0.8 | 88 | 29 | 55*25*20 |
| XM11 150*400 | 400 | 150 | 110 | 5 | 110 | 0.9 | 100 | 36 | 60*25*20 |
| XM11 150*450 | 450 | 150 | 110 | 5 | 110 | 0.94 | 103 | 48 | 65*25*20 |
| XM11 200*400 | 400 | 200 | 110 | 5 | 110 | 0.95 | 123 | 62 | 60*30*20 |
| XM11 200*450 | 450 | 200 | 110 | 5 | 110 | 1.03 | 113 | 66 | 65*30*20 |
| XM11 200*500 | 500 | 200 | 110 | 5 | 110 | 1.23 | 135 | 72 | 70*30*20 |
| XM11 200*560 | 560 | 200 | 110 | 5 | 110 | 1 | 110 | 80 | 76*30*20 |
| XM11 200*600 | 600 | 200 | 110 | 5 | 110 | 1 | 110 | 86 | 76*30*20 |
| XM11 200*630 | 630 | 200 | 110 | 5 | 110 | 1.1 | 121 | 88 | 83*30*20 |
| XM11 250*500 | 500 | 250 | 110 | 5 | 110 | 1.2 | 132 | 92 | 70*35*20 |
| XM11 250*600 | 600 | 250 | 110 | 5 | 110 | 1.7 | 185 | 118 | 80*35*20 |
| XM11 300*600 | 600 | 300 | 110 | 5 | 110 | 1.88 | 207 | 144 | 80*40*20 |
| XM11 300*680 | 680 | 300 | 110 | 5 | 110 | 1.5 | 160 | 150 | 88*40*20 |
| XM11 300*800 | 800 | 300 | 115 | 5 | 110 | 2 | 220 | 172 | 100*40*21 |
| XM11 300*1000 | 1000 | 300 | 115 | 5 | 110 | 2.2 | 342 | 223 | 120*40*21 |
| XM11 320*800 | 800 | 320 | 115 | 5 | 110 | 2.1 | 231 | 185 | 88*42*20 |
| XM11 320*1000 | 1000 | 320 | 115 | 5 | 110 | 2.35 | 258 | 238 | 120*42*21 |
| XM11 400*800 | 800 | 400 | 115 | 5 | 110 | 2.3 | 253 | 235 | 88*50*21 |
| XM11 400*1000 | 1000 | 400 | 115 | 5 | 110 | 2.88 | 316 | 290 | 120*50*21 |
Note: Other specifications can be customized ,please call for further information.
Suggestion: You can choose two installation methods (through hole/pressing block), two types(A/B). |
|
To better ensure the safety of your goods, professional,
environmentally friendly, convenient and efficient packaging
services will be provided. Each chuck will be well protected by
wooden boxs.
