Quick Clamp, Electro Permanent Magnetic Chuck
X61 standard electronic controlled permanent magnetic chuck
·X61 use electric pulse to control its magnetism. No electricity is
needed when X61 at work.
·X61 has the convenience of "Electronic controlled magnetic chuck"
and the safety precision of "Permanent magnet chuck"
·High suction above 20 KG/cm², used for high precision milling and
grinding.

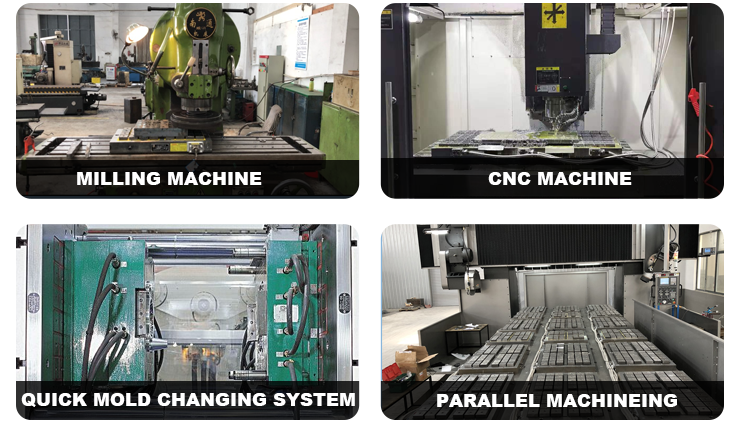

Application
Specification sheet
| Model | Dimensions (MM) | Polar Distance (MM) | Polar number | Net Weight (KG) |
| Length | Breadth | Height | 70*70 | 50*50 |
| X61-250*250 | 250 | 250 | 68 | 70*70/50*50 | 4 | 9 | 31 |
| X61-250*300 | 300 | 250 | 6 | 12 | 40 |
| X61-300*300 | 300 | 300 | 9 | 16 | 48 |
| X61-300*400 | 400 | 300 | 12 | 20 | 64 |
| X61-300*500 | 500 | 300 | 15 | 28 | 80 |
| X61-300*600 | 600 | 300 | 18 | 32 | 96 |
| X61-300*800 | 800 | 300 | 24 | 48 | 128 |
| X61-300*1000 | 1000 | 300 | 30 | 60 | 160 |
| X61-400*400 | 400 | 400 | 16 | 25 | 85 |
| X61-400*500 | 500 | 400 | 20 | 35 | 105 |
| X61-400*600 | 600 | 400 | 24 | 40 | 128 |
| X61-400*800 | 800 | 400 | 32 | 60 | 170 |
| X61-400*1000 | 1000 | 400 | 40 | 75 | 210 |
| X61-500*500 | 500 | 500 | 80 | 25 | 49 | 155 |
| X61-500*600 | 600 | 500 | 30 | 56 | 188 |
| X61-500*800 | 800 | 500 | 40 | 84 | 250 |
| X61-500*1000 | 1000 | 500 | 50 | 105 | 310 |
| X61-600*600 | 600 | 600 | 36 | 72 | 225 |
| X61-600*800 | 800 | 600 | 48 | 96 | 300 |
| X61-600*1000 | 1000 | 600 | 60 | 120 | 375 |
| X61-600*1200 | 1200 | 600 | 72 | 144 | 450 |
| X61-600*1500 | 1500 | 600 | 90 | 176 | 560 |
Note: Other specifications can be customized ,please call for
further information.
Suggestion: You can choose two installation methods (through
hole/pressing block). |
|
Company Profile
Magnet is widely used in industries like metallurgy, machinery,
shipbuilding, electric power, mine, automobile manufacturing, rail
transportation and so on.
There is mainly 3 kinds of magnet, permanent magnet, electromagnet,
permanent electromagnet. different magnet is suitable for different
areas, and as a professional supplier of magnetic tools, JYC technology is is always providing customers appropriate solutions for our
customers.
Packing&Delivery
To better ensure the safety of your goods, professional,
environmentally friendly, convenient and efficient packaging
services will be provided. Each chuck will be well protected by
wooden boxs.
FAQ
Q:Are you manufactory or trade company.
A:We are both factory and trade company, we have lots of Cooperation factory with different quality and prices, just tell us
your need, there is always a product suitable for you.
Q:Where do you located:
A:JYC technology Co.,Ltd. located at Wuxi City, Jiangsu Province, 1
hour by fast rail way to Shanghai City.
Q:Production time:
A:Normally,We'll have regular items in stock, customized products
will take 7-14 work days.
Q:Payment term:
A:TT, credit card, L/C, Western Union, Paypal and so on, we accept all kinds of payment.
Q:What's your work time:
A:Normally, our work time is 9:00 AM to 17:00 PM Beijing time, but
if you have emergency, Please contact us freely at any time. Our salesman will sulove
your problem as soon as possible.
