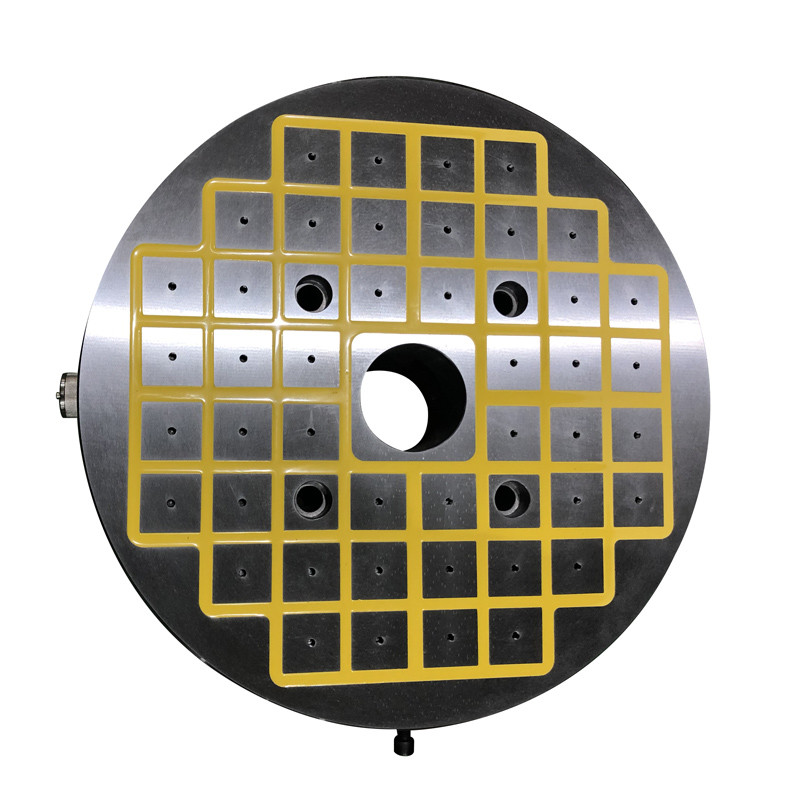

X71 circular electro permanent magnetic chuck
Product Introduction
The working principle of the permanent magnet fixture is to use the
characteristics of different permanent magnet materials, through
the electronic control system on the internal magnetic circuit
distribution control and conversion, so that the system internal
magnetic field to achieve their own balance, or degaussing state,
or release to the fixture Surface, that is, magnetic state.
X71 circular electronic controlled permanent magnetic chuck is
designed with “multi-magnetic circuit and electric control”, its
magnetism is adjustable. After magnetization, X62 does not need to
continue to supply electric power. Electric power is supplied by
quick connection or electric slip ring. Two clamps are accessible
during the processing, work piece can be machined freely. It can
really play the function “one clamping to complete three-sided
processing”. X62 is suitable for work piece that not easy to clamp,
such as thin wall parts, flange parts, shaped parts, etc. It is
widely used on horizontal lathe, vertical lathe, vertical grinder,
5 axis machining center, turning and milling composite machine tool
and so on."
Product Parameters
Model | Dimensions(MM) | Polar Number | Channel Number | Voltage (V) | Max RPM
[1/min] | Net WT (KG) | Overall size (CM) |
| φD | φd | H |
| X71-400 | 400 | 60 | 100 | 12 | 1 | 220/480 | 1000 | 98 | 50*50*20 |
| X71-500 | 500 | 60 | 100 | 12 | 1 | 220/480 | 800 | 150 | 60*60*20 |
| X71-600 | 600 | 80 | 100 | 12 | 1 | 220/480 | 650 | 220 | 70*70*20 |
| X71-700 | 700 | 80 | 110 | 12/16 | 2 | 220/480 | 600 | 290 | 80*80*22 |
| X71-800 | 800 | 120 | 110 | 12/16 | 2 | 220/480 | 500 | 390 | 90*90*22 |
| X71-1000 | 1000 | 200 | 120 | 16/24 | 2 | 220/480 | 400 | 660 | 110*110*22 |
| X71-1200 | 1200 | 250 | 120 | 16/24 | 2 | 220/480 | 320 | 950 | 130*130*22 |
| X71-1400 | 1400 | 300 | 130 | 18/24 | 4 | 220/480 | 260 | 1400 | 150*150*25 |
| X71-1600 | 1600 | 400 | 130 | 24/32 | 4 | 220/480 | 240 | 1850 | 170*170*25 |
| X71-1800 | 1800 | 500 | 130 | 24/32 | 4 | 220/480 | 160 | 2300 | 190*190*25 |
| X71-2000 | 2000 | 600 | 135 | 24/36 | 6 | 220/480 | 128 | 2900 | 210*210*26 |
| X71-2500 | 2500 | 800 | 135 | 36/48 | 8 | 220/480 | 100 | 4500 | 268*268*26 |
| X71-3000 | 3000 | 800 | 140 | 36/48 | 8 | 220/480 | 80 | 6800 | 318*318*26 |
| X71-3500 | 3500 | 1000 | 140 | 48/60 | 10 | 220/480 | 60 | 9500 | 368*368*26 |
Note: Other specifications can be customized ,please call for further information.
Suggestion: You can choose two installation methods (Quick plug/electric conductive slip ring). |
|
| Permanent Magnetic Chuck | Electromagnetic Magnetic Chuck | Electro Permanent Magnetic Chuck |
| Magnetic Source | Ndfeb | Coil and Core | Ndfeb Anico |
| Magnetic Force Principle | Internal Magnetic Fields | Constant Current | Conversion by Electronic Control Device |
| Usage | Manual | Electric Control Device | Electric Control Device |
| Precision | About 0.02-0 05 (the Error Increased Bysizes) | About 0.01-0.02 | About 0 002-0.005 |
| Potential Risk | Prone to Security Incidents | Prone to Security Incidents | Absolute Safety |
| Magnetic Regulation | Unable to Adjust | Electric Control Device to Adjustsuction | Electric Control Device to Adjust Suction |
| Suction | Small | Medium | Large |
| Residual Magnetism | More Remanence, Demagnetiz Ation Devicerequired | Less Remanence, Demagnetizationdevice Required | Automatic Demagnetiz Ation Withoutdemagnetization Device |
| Thermal Deformation | No | Continuous Power On, Heat Generationand Thermal Deformation | No |
| Applicable Workpiece | Thin and Small Workpieces | Thin and Small, Medium Sizedworkpieces | All Kinds of Workpieces |
| Application | Mainly Used for Grinding Machine | Mainly Used for Grinding Machine | For Grinding/milling/lathe Manchine and Soon. |
| Accessories | No | Electric Control Device | Electric Control Device |
| Serive Life | 3-5 Years | 6-10 Years | 20 Years |
