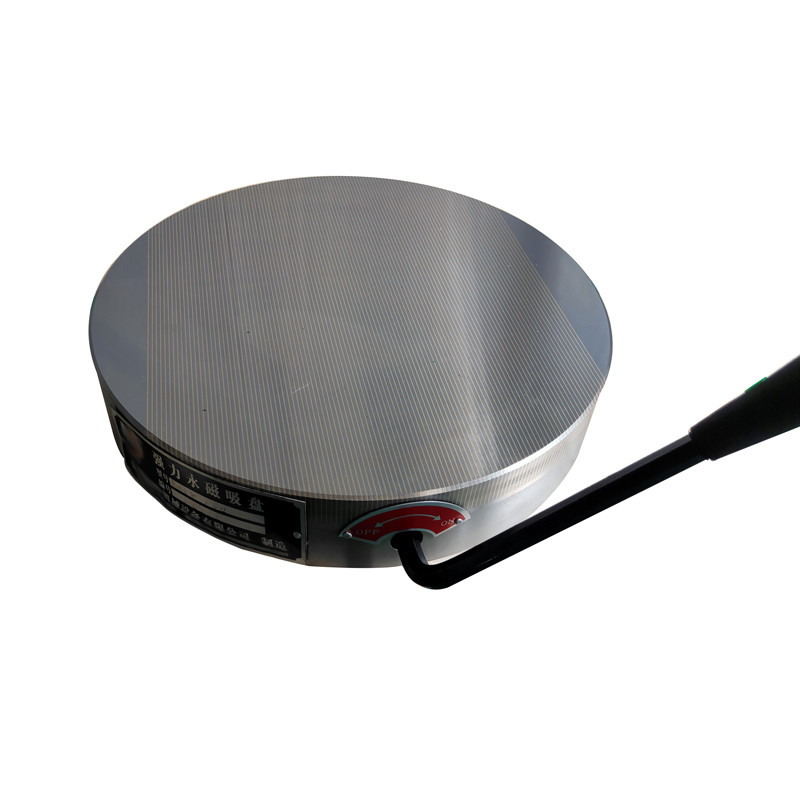

XF51 Radial Circular PMC
Product introduction:
PRECAUTIONS AND METHODS FOR USE OF SUCTION CUP
1. When the workpiece is placed, the magnetic pole should be
occupied as much as possible to obtain greater attraction rather
than aligning the broken pole
2. For workpieces with large area and irregular bottom shape,
multiple suction cups can be used together3. For workpieces with
large area and flat bottom, the auxiliary block can be used to pad
the height to complete the clamping
4. For horizontal milling or drilling machine, it can cooperate
with tripod side suction cup to complete clamping
5. For smaller workpieces, multiple workpieces can be clamped at
one time to improve work efficiency(please select auxiliary block
for workrkpieces placed in the (outermost place because the
workpieces are too small)
6.in order to ensure the parallelism between the plane of the
suction cup and the working surface of the machine tool, after the
suction cup is installed in place, the user can clean and mill the
working surface of the suction cup
7. Super strong suction cup is a set of magnetic clamping tools,
which is composed of magnetic suction cup body and other optional
accessories. The accessories should be used as much as possible to
realize precise and rapid clamping. For small workpieces, auxiliary
blocks should be selected properly
X51 radial circular permanent magnetic chuck is suitable for light
cutting progress of small vertical plane grinder,outside
cylindrical and internal grinder.
Specification sheet
| Model | Dimensions (MM) | Polar form | Net Weight (kg) |
| D 1 | H | h | D2 | D3 | K | n | M |
| XF51-150 | 150 | 76 | 18 | 110 | 130 | 4 | 4 | M8 | Radial type | 8 |
| XF51-160 | 160 | 76 | 18 | 120 | 140 | 4 | 4 | M8 | 10 |
| XF51-200 | 200 | 76 | 18 | 160 | 180 | 4 | 4 | M10 | 18 |
| XF51-250 | 250 | 76 | 18 | 200 | 224 | 4 | 4 | M10 | 28 |
| XF51-300 | 300 | 76 | 18 | 230 | 260 | 4 | 4 | M10 | 35 |
| XI'51-350 | 350 | 80 | 20 | 260 | 310 | 4 | 4 | M12 | 45 |
| XI?51-400 | 400 | 80 | 20 | 300 | 360 | 4 | 6 | M12 | 60 |
| XF51-450 | 450 | 80 | 20 | 350 | 410 | 6 | 6 | Ml 2 | 75 |
| XF51-500 | 500 | 90 | 25 | 380 | 440 | 6 | 6 | M12 | 145 |
| XF51-600 | 600 | 90 | 25 | 480 | 540 | 6 | 6 | M12 | 210 |
| Note: Other specifications can be customized ,please call for further information. |
|
