XM43 double tiltable permanent magnetic chuck
Used for all kinds of flat machine, electric discharge machine(EDM)
for precision milling and cutting process from single side or
double side,
its adjustment is more flexible and accurate.
Selection of high-quality materials makes its suction strong,
remanence small, magnetism uniform. Plane accuracy of the magnetic
surface remains the same when you turn on or off.
Magnetic pole arrangement is only 1.5mm, which makes it easy to
hold smaller parts.
| Model | Dimensions (MM) | Machine angle | Net weightN.W(kg) |
| Width | Length | Height | Pole pitch |
| XM43-100*175 | 100 | 175 | 115 | 0. 5+1.5 | 0-45° | 12 |
| XM43 125*250 | 125 | 250 | 115 | 0.5+1. 5 | 0-45° | 20 |
| XM43 150*150 | 150 | 150 | 115 | 0. 5+1.5 | 0-45° | 15 |
| XM43T 50*300 | 150 | 300 | 115 | 0. 5+1. 5 | 0-45° | 32 |
| Note: Other specifications can be customized ,please call for
further information. |
| Item | Permanent magnetic chuck | Electromagnetic magnetic chuck | Electro permanent magnetic chuck |
| Magnetic source | NdFeB | Coil and core | NdFeB,Alnico |
| Magnetic force principle | Internal magnetic fields | Constant current | Conversion by electronic control device |
| Control method | Manual | Electric control device | Electric control device |
| Precision | About 0.02-0.05 (the error increased by sizes) | About 0.02-0.05 | About 0.002-0.005 |
| Potential risk | safe | Prone to security incidents | Absolute safe |
| Magnetic regulation | Unable to adjust | Electric control device to adjust suction | Electric control device to adjust suction |
| Residual magnetism | Few remanence | Few remanence | Automatic surface demagnetization |
| Thermal deformation | None | Few heat generation and thermal deformation after continuous power
o n | None |
| Serive life | 6-10 years | 3-5 years | Above 10 years |
| Suitable for clamping of various workpieces without deformation | 1 | Clamping tends to deform the workpiece |
| Uniform suction, improve processing accuracy | 2 | During the machining process, the workpiece generates vibrations,
which reduces the machining accuracy and the surface flatness. |
| Accurate positioning, convenient clamping | 3 | Difficult clamping and inaccurate positioning reduce work
efficiency |
| No interference position, workpieces can be fmachined on five sides
at one time | 4 | clamping with processing interference positions, workpieces can not
be processed in one operation
|
 |  |  |

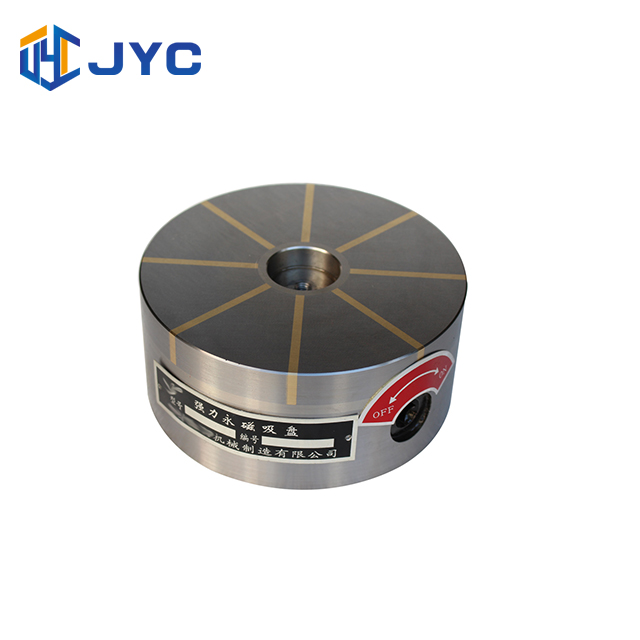

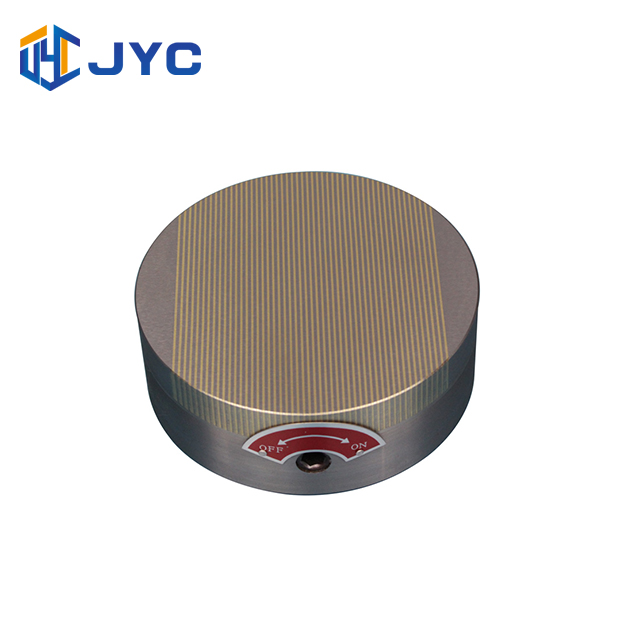

Model: PMSC Super powerful permanent magnetic chuck for milling machine | Model: XCM91 Powerful permanent magnetic chuck for milling machine | Model:XM51 Dense pole round permanent magnetic chuck for grinding |
 |  |  |
Model: XM42 Tiltable permanent magnetic chuck | Model: XH42 Rotatable permanent magnetic chuck | Model:XF51 Radial pole round permanent magnetic chuck for lathe milling |
