XM43 Double Tiltable permanent magnetic chuck
Product introduction:
XM43 double tiltable permanent magnetic chuck is used on all kinds
of flat machine, electric discharge machine(EDM) for precision
milling and cutting process from single side or double side,its
adjustment is more flexible and accurate. Selection of high-quality
materials makes its suction strong, remanence small, magnetism
uniform. The plane accuracy of the magnetic surface remains the
same when you turn on or off. The magnetic pole arrangement is only
1.5mm, which makes it easy to hold smaller parts.

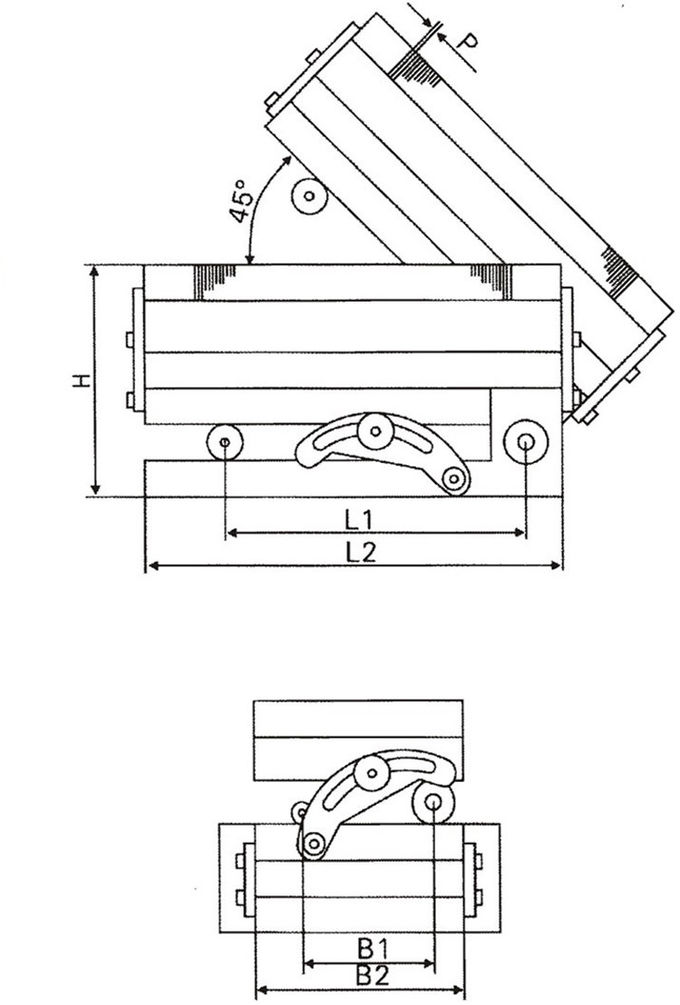

Specification sheet
| Model | Dimensions (MM) | Grinding angle | Net weight |
| A | B | C | D | E | F | N.W(kg) |
| XM43-100*175 | 100 | 175 | 115 | 75 | 100 | 0. 5+1.5 | 0-45 | 12 |
| XM43 125*250 | 125 | 250 | 115 | 75 | 150 | 0.5+1. 5 | 0-45 | 20 |
| XM43 150*150 | 150 | 150 | 115 | 100 | 100 | 0. 5+1.5 | 0-45 | 15 |
| XM43T 50*300 | 150 | 300 | 115 | 100 | 150 | 0. 5+1. 5 | 0-45 | 32 |
| Note: Other specifications can be customized ,please call for further information. |
|
USAGE METHOD
1. Wipe the bottom surface of the suction cup and gently place it
on the workbench of the machine tool withthe nameplate facing out,
and then fasten the base with the bolt pressing plate
2. Check or repair the parallelism of the working face of the
suction cup to the working surface of themachine tool
3. Place the workpiece on the working surface of the suction cup,
and then insert the wrench into the shaft hole and turn it 180
degrees clockwise to align the red mark with "on" to suck the
workpiece for processing.4. After the workpiece iS processed,
insert the wrench into the shaft hole and turn it 180 degrees anti
clock wise to align the red mark with "off' to remove the
workpiece.
MATTERS NEEDING ATTENTION
1. It is strictly prohibited to knock and scratch, and the surface
shall be cleaned before use to avoid affecting the accuracy.
2. Use ambient temperature -40 'C ~ 50 'C to prevent magnetic force
reduction
3. After use, the working surface shall be coated with antirust oil
to prevent rust.
4. Please pay attention to the safety when processing, pay
attention to the speed and the cutting amount(grinding amount) when
processing hard materials, so as to prevent the workpiece from
flying out.
