XM42 tiltable permanent magnetic chuck
As a professional designer and manufacturer ofmagnetic products
over 10 years, Wuxi Jiuyicheng Technology Company Limited is always providing customers appro-priate solutions to holding
and lifting materialduring machining progressing.
The huge range of our magnetic products includeElectro magnetic
chuck(EMC) series, Permanentmagnetic chuck(PMC) series, Electro
permanentmagnetic chuck(EPMC) series, Electro magneticlifter
(EML),.Permanent magnetic lifter(PM-L),Electro permanent magnetic
lifter (EPML),Iron remover, Demagnetizer, etc.
Magnet is widely used in industries like metallurgy, machinery,
shipbuilding, electric power, mine, automobile manufacturing, rail
transportation and so on.
There is mainly 3 kinds of magnet, permanent magnet, electromagnet,
permanent electromagnet. different magnet is suitable for different
areas, and as a professional supplier of magnetic tools, JYC
technology is is always providing customers appropriate solutions
for our customers.

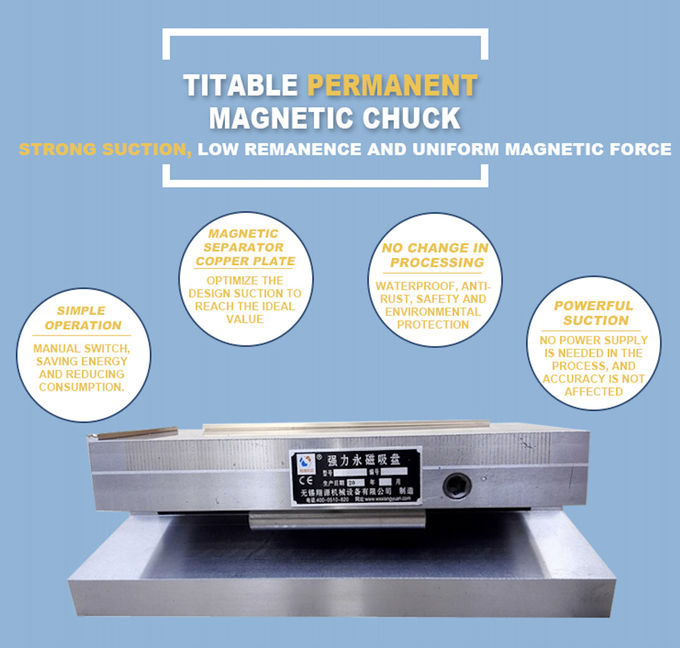

Product introduction: XM42 tiltable permanent magnetic chuck is
used on all kinds of flat grinding machine, electric discharge
machine for precision milling and cutting process from single side.
Specification sheet
| Model | Dimensions (MM) | Processing angle | Net weight |
| A | B | C | D | E | F | 0 〜45° | N.W(kg) |
| XM42-100x175 | 100 | 175 | 85 | 75 | 20 | 0. 5+1. 5 | 0 〜45° | 10 |
| XM42-125x250 | 125 | 250 | 85 | 100 | 20 | 0.5+1. 5 | 0 〜45° | 12.5 |
| XM42 150x150 | 150 | 150 | 85 | 100 | 20 | 0. 5-H.5 | 0〜45° | 17 |
| XM42-150x300 | 150 | 300 | 85 | 100 | 20 | 0. 5+1. 5 | 0 〜45° | 25 |
| Note: Other specifications can be customized ,please call for further information. |
|
USAGE METHOD
1. Wipe the bottom surface of the suction cup and gently place it
on the workbench of the machine tool withthe nameplate facing out,
and then fasten the base with the bolt pressing plate
2. Check or repair the parallelism of the working face of the
suction cup to the working surface of themachine tool
3. Place the workpiece on the working surface of the suction cup,
and then insert the wrench into the shaft hole and turn it 180
degrees clockwise to align the red mark with "on" to suck the
workpiece for processing.4. After the workpiece iS processed,
insert the wrench into the shaft hole and turn it 180 degrees anti
clock wise to align the red mark with "off' to remove the
workpiece.
MATTERS NEEDING ATTENTION
1. It is strictly prohibited to knock and scratch, and the surface
shall be cleaned before use to avoid affecting the accuracy.
2. Use ambient temperature -40 'C ~ 50 'C to prevent magnetic force
reduction
3. After use, the working surface shall be coated with antirust oil
to prevent rust.
4. Please pay attention to the safety when processing, pay
attention to the speed and the cutting amount(grinding amount) when
processing hard materials, so as to prevent the workpiece from
flying out.
