XH42 rotary permanent magnetic chuck
Product introduction:
Power on,at the moment the workpiece is sucked firmly. After
finishing machining,taking off the parts the moment power be cut
off.No need power during processing, so there is no heat and the
precision will not change.The disc will keep magnetism and
workpiecewill keep fixed even if the power off suddenly. Suitable
for high precision grinding ,milling and others.
XH42 rotary permanent magnetic chuck has a calibrated scale, angle
is adjustable by ± 90°, which is used for high precision grinding.
XH42 is suitable for all kinds of precision plane grinder.
Specification sheet

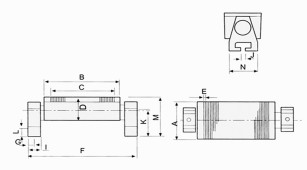

| Model | Dimensions (MM) | Net weight (KG) |
| A | B | C | D | E | F | G | I | J | K | L | M | N |
| XH42 100*175A | 100 | 175 | 135 | 100 | 1.5(1+0.5) | 292 | 25 | 50 | 14 | 103 | 50 | 163 | 100 | 18.5 |
| XH42 125*250A | 125 | 250 | 250 | 100 | 1.5(1+0.5) | 370 | 25 | 50 | 14 | 103 | 50 | 163 | 100 | 25 |
| XH42 150*150A | 150 | 150 | 150 | 100 | 1.5(1+0.5) | 270 | 25 | 50 | 14 | 103 | 50 | 163 | 100 | 21 |
| XH42 150*300A | 150 | 300 | 300 | 100 | 1.5(1+0.5) | 420 | 25 | 50 | 14 | 103 | 50 | 163 | 100 | 31 |
| Note: Other specifications can be customized ,please contact us for further information. |
|
USAGE METHOD
1. Wipe the bottom surface of the suction cup and gently place it
on the workbench of the machine tool withthe nameplate facing out,
and then fasten the base with the bolt pressing plate
2. Check or repair the parallelism of the working face of the
suction cup to the working surface of themachine tool
3. Place the workpiece on the working surface of the suction cup,
and then insert the wrench into the shaft hole and turn it 180
degrees clockwise to align the red mark with "on" to suck the
workpiece for processing.4. After the workpiece iS processed,
insert the wrench into the shaft hole and turn it 180 degrees anti
clock wise to align the red mark with "off' to remove the
workpiece.
MATTERS NEEDING ATTENTION
1. It is strictly prohibited to knock and scratch, and the surface
shall be cleaned before use to avoid affecting the accuracy.
2. Use ambient temperature -40 'C ~ 50 'C to prevent magnetic force
reduction
3. After use, the working surface shall be coated with antirust oil
to prevent rust.
4. Please pay attention to the safety when processing, pay
attention to the speed and the cutting amount(grinding amount) when
processing hard materials, so as to prevent the workpiece from
flying out.
