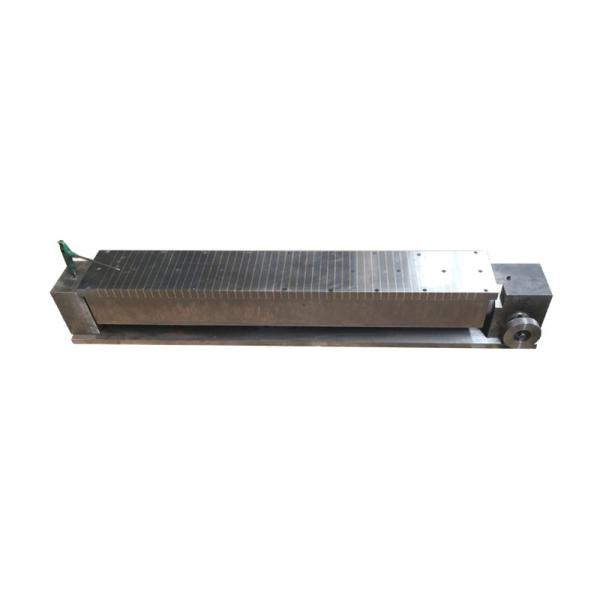

XD11 rotary electronic controlled magnetic chuck
Product introduction:
The advantage of the permanent magnet fixture is that the workpiece
positioning and clamping is very convenient, do not need cumbersome
and strenuous manpower operation. At the same time, because the
suction force is only in the bottom of the workpiece, the workpiece
does not need to use the clamping plate clamping, to avoid the
clamping force caused by the workpiece deformation and scratches.
The permanent magnet fixture can realize the automatic adjustment
of the workpiece. At the same time, it can realize the machine tool
without vibration cutting, grinding, milling and so on, which can
prolong the service life of the machine.
XD11 rotary electronic controlled magnetic chuck has a calibrated
scale, angle is adjustable by ± 45°, the chuck is integrated with
the rotary spindle, which makes positioning precisely. XD11 is
suitable for processing(Grinding, iron cutting, wire cutting,
sparking, etc.) of the work piece with an angle.
Specification sheet
| Model | Dimensions (MM) | Overall Lengh L2 | Overall Height H2 | Voltage (V) | Current (A) | Power (W) | Net weight (KG) |
| B1 | L1 | Le | H1 | Polar distance | B2 | G | h1 | h2 | P1 | P2 |
| XD11-100*250 | 100 | 250 | 211 | 95 | 10(2+8) | 100 | 14 | 91 | 18 | 50 | 38 | 380 | 145 | 110 | 0.3 | 33 | 21 |
| XD11-120*300 | 120 | 300 | 240 | 95 | 14(2+12) | 100 | 14 | 91 | 18 | 50 | 38 | 430 | 145 | 110 | 0.44 | 48.4 | 29 |
| XD11-125*250 | 125 | 250 | 211 | 95 | 14(2+12) | 100 | 14 | 91 | 18 | 50 | 38 | 380 | 145 | 110 | 0.32 | 35.2 | 25 |
| XD11-150*300 | 150 | 300 | 240 | 95 | 14(2+12) | 100 | 14 | 91 | 18 | 50 | 38 | 430 | 145 | 110 | 0.4 | 44 | 37 |
| XD11-150*350 | 150 | 350 | 296 | 95 | 14(2+12) | 100 | 14 | 91 | 18 | 50 | 38 | 480 | 145 | 110 | 0.42 | 46.2 | 41 |
| XD11-150*450 | 150 | 450 | 408 | 95 | 14(2+12) | 100 | 14 | 91 | 18 | 60 | 38 | 600 | 145 | 110 | 0.5 | 55 | 51 |
| XD11-200*500 | 200 | 500 | 452 | 95 | 14(2+12) | 100 | 16 | 120 | 20 | 60 | 43 | 650 | 170 | 110 | 0.9 | 122 | 76 |
| XD11-200*600 | 200 | 600 | 560 | 95 | 14(2+12) | 100 | 16 | 120 | 20 | 60 | 43 | 750 | 170 | 110 | 1.1 | 121 | 89 |
| XD11-300*600 | 300 | 600 | 560 | 95 | 14(2+16) | 120 | 16 | 120 | 20 | 80 | 48 | 790 | 170 | 110 | 1.4 | 154 | 106 |
| XD11-300*680 | 300 | 680 | 620 | 95 | 14(2+16) | 120 | 16 | 120 | 20 | 80 | 48 | 870 | 170 | 110 | 1.45 | 159.5 | 120 |
| XD11-300*800 | 300 | 800 | 740 | 95 | 14(2+16) | 120 | 16 | 120 | 20 | 80 | 48 | 960 | 170 | 110 | 1.84 | 202.4 | 155 |
| Note: Other specifications can be customized ,please call for further information. |
|
