MW84 Electronic controlled magnetic lifter for Medium Thick Plate
(MW84-35 Series)
Product introduction:

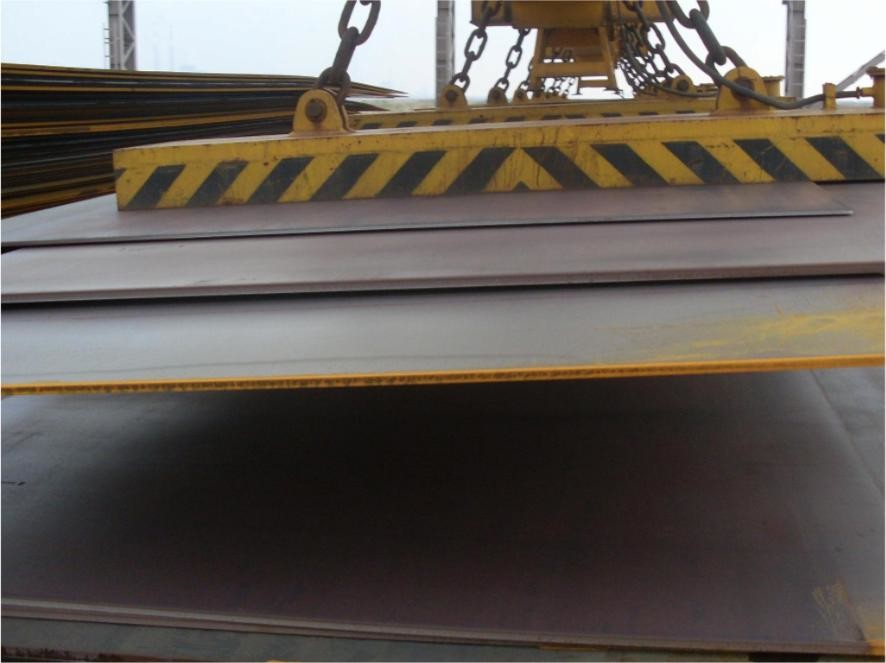

MW84 electronic controlled lifting magnet is designed for lifting
medium and heavy plate. The lifting operation is safe, accurate and
fast. In consideration of the possibility of bending deformation of
long steel plate during lifting, please use multiple electromagnets
when lifting heavy steel plate. For medium and heavy plates
(6mm-32mm), the distance between electromagnets is more than 3-4m,
and the length of the extension part at both ends can be taken as
one half of the distance. According to the number of lifting
pieces, it can be divided into 350 type and 400 lines.
Model 350 lifting magnet is suitable for medium and heavy plate
factories, shipyards and machinery manufacturers. It can lift one
or a certain number of steel plates by magnetic control.
Model 400 lifting magnet is suitable for carrying as many sheets as
possible at a time. It also can design and manufacture the high
temperature products for lifting steel plates below 700 ℃ according
to the requirements of customers.
Application
1.Used in metallurgy, mining, casting, machinery, transportation
and other industries to lift iron and steel and other
magneto-conductivity materials.
2.Used for electromagnetic manipulator, holding steel and other
magneto-conductivity materials.
Specification sheet
| Model | Dimensions (MM) | Weight (kg) | Cold-state power (kw) | Cold-state currency (A) | Transportable width (mm) |
| A | B | C | D | E | F | G | δ6 | δ8 | δ10 | δ12 | δ16 |
| MW84-9030T/1 | 900 | 300 | 900 | 350 | 110 | 180 | 32 | 185 | 0.41 | 3.7 | 2300 | 2700 | 3000 | 3200 | 3600 |
| MW84-10535T/1 | 1050 | 350 | 960 | 400 | 110 | 180 | 32 | 330 | 0.9 | 4.1 | 2650 | 3150 | 3350 | 3550 | 4050 |
| MW84-14035T/1 | 1400 | 350 | 940 | 500 | 110 | 180 | 32 | 430 | 1.2 | 5.5 | 3000 | 3500 | 3700 | 3900 | 4400 |
| MW84-17535T/1 | 1750 | 350 | 940 | 700 | 110 | 180 | 32 | 510 | 1.5 | 6.8 | 3350 | 3850 | 4050 | 4250 | 4750 |
| MW84-21035T/1 | 2100 | 350 | 920 | 800 | 110 | 180 | 32 | 600 | 1.8 | 8.2 | 3850 | 4200 | 4400 | 4600 | 5100 |
| MW84-24535T/1 | 2450 | 350 | 980 | 900 | 110 | 180 | 32 | 720 | 2.5 | 11.4 | 4200 | 4550 | 4750 | 4950 | 5450 |
| Note: Other specifications can be customized ,please call for further information. |
|
