RCDB Self-cooling Circular Electromagnet Iron Remover
Why Choose Us?
Safety, Magnetism Continue 30years Without Electric. Energy saving,
Above 95%.
The Clamping Force Can Be As nigh As More Than 20 Kg/cm2.
High Efficiency, Improve The efficiency of More Than 60%.
Very Easy to Use, Fast, Durable, Maintenance Free.
Product Introduction
Product Description: The application of RCDB nature cooling type
electromagnetic iron remover is equivalent to PDC series disk type
electromagnetic iron remover and RCDY series electromagnetic iron
remover. They are both the iron removing device for removing
impurity iron in powder or block non-magnetic materials. The inner
part of the machine is made of special resin for electrical
engineering, self cooling and full sealing structure. It has the
characteristics of deep magnetic permeability, strong suction,
dust-proof, rain proof, corrosion-resistant, etc. It can still
operate reliably in extremely harsh environment.
Product Parameters

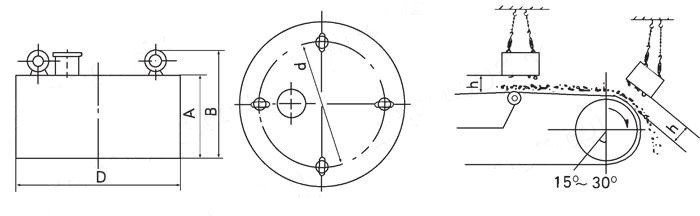

| Model | Belt width(mm) | Rated hoisting height(mm) | Magnetic intensity(mT) | Materials Thickness(≤mm) | Excitation power(≤kw) | Belt speed(≤m/s) | Weight(kg) | Dimensions(mm) |
| A | B | DΦ | dΦ |
| RCDB-3 | 300 | 75 | 70 | 50 | 0.4 | 4.5 | 185 | 210 | 250 | 400 | 280 |
| RCDB-4 | 400 | 100 | 70 | 70 | 0.6 | 4.5 | 300 | 240 | 280 | 500 | 400 |
| RCDB-5 | 500 | 150 | 70 | 90 | 1 | 4.5 | 430 | 280 | 325 | 610 | 450 |
| RCDB-6 | 600 | 175 | 70 | 120 | 1.6 | 4.5 | 580 | 280 | 325 | 710 | 500 |
| RCDB-6.5 | 650 | 200 | 70 | 150 | 2 | 4.5 | 680 | 280 | 325 | 816 | 640 |
| RCDB-8 | 800 | 250 | 70 | 200 | 3.6 | 4.5 | 950 | 310 | 355 | 960 | 780 |
| RCDB-10 | 1000 | 300 | 70 | 250 | 5 | 4.5 | 1520 | 310 | 360 | 1200 | 920 |
| RCDB-12 | 1200 | 350 | 70 | 300 | 6.8 | 4.5 | 2250 | 310 | 365 | 1400 | 1000 |
| RCDB-14 | 1400 | 400 | 70 | 350 | 9 | 4.5 | 2950 | 405 | 485 | 1650 | 1400 |
| RCDB-16 | 1600 | 450 | 70 | 400 | 13 | 4.5 | 4800 | 460 | 540 | 1900 | 1650 |
| RCDB-18 | 1800 | 500 | 70 | 450 | 18 | 4.5 | 6900 | 530 | 610 | 2150 | 1800 |
| Note: Other specifications can be customized ,please call for
further information. |
|
Processing Technology
1. Cnc Flame Cutting
2. Gantry Milling
3. Cnc Processing Centor
6. Coils and Magnetic Steel Assembly
5. Deburring and Cleaning
4. Drilling Machine
7. Magnetic Steel Commissioning
8. Electrical with Stand Voltage Detection
9. Epoxy Potting
10. Suction and Pull-out Force Test
11. Surface Grinder Finish Machining
12. Surface Magnetic Remanence (inspection)
13. Finished Product Electrical with Stand Voltage Detection
14. Finished Product Appearance Inspection
15. Packing List Inspection
16. Finished Package
Company Profile
As a professional designer and manufacturer ofmagnetic products
over 10 years, Wuxi Jiuyicheng Technology Company Limited is always providing customers appro-priate solutions to holding
and lifting materialduring machining progressing.
The huge range of our magnetic products includeElectro magnetic
chuck(EMC) series, Permanentmagnetic chuck(PMC) series, Electro
permanentmagnetic chuck(EPMC) series, Electro magneticlifter
(EML),.Permanent magnetic lifter(PM-L),Electro permanent magnetic
lifter (EPML),Iron remover, Demagnetizer, etc.
Magnet is widely used in industries like metallurgy, machinery,
shipbuilding, electric power, mine, automobile manufacturing, rail
transportation and so on.
There is mainly 3 kinds of magnet, permanent magnet, electromagnet,
permanent electromagnet. different magnet is suitable for different
areas, and as a professional supplier of magnetic tools, JYC
technology is is always providing customers appropriate solutions
for our customers.
