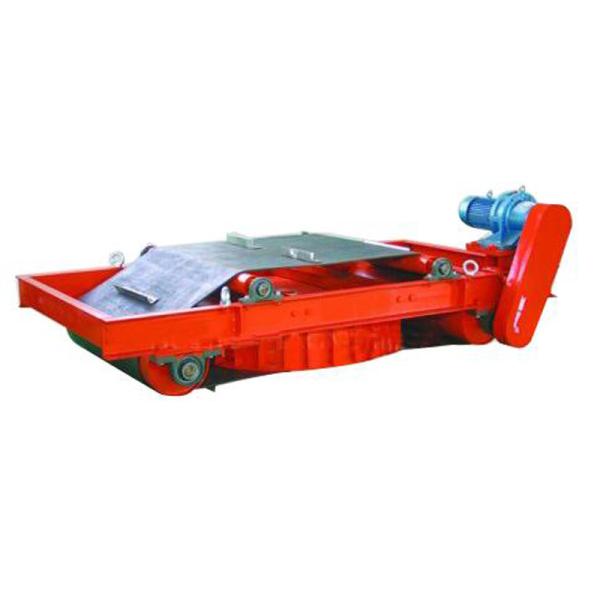

RCDD Self-cooling and Dumping Electromagnet Iron Remover
Product Parameters

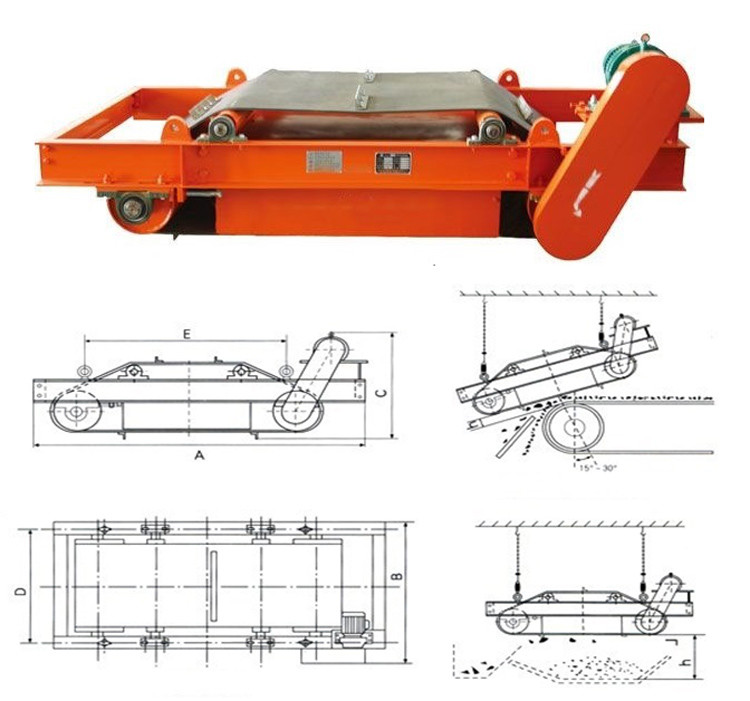

| Model | Belt width(mm) | Rated hoisting height(m) | Materials Thickness(≤mm) | Excitation power(≤kw) | Magnetic intensity(≥mT) | Motor power(kw) | Belt speed(≤m/s) | Weight(kg) | Dimensions(mm) |
| A | B | C | D | E |
| RCDD-5 | 500 | 150 | 100 | 1.2 | 70 | 1.5 | 4.5 | 950 | 2020 | 1040 | 775 | 800 | 1000 |
| RCDD-6 | 600 | 180 | 120 | 2 | 70 | 1.5 | 4.5 | 1380 | 2140 | 1100 | 800 | 900 | 1100 |
| RCDD-6.5 | 650 | 200 | 150 | 3 | 70 | 2.2 | 4.5 | 1490 | 2275 | 1190 | 820 | 990 | 1250 |
| RCDD-8 | 800 | 250 | 200 | 4 | 70 | 2.2 | 4.5 | 1770 | 2540 | 1480 | 865 | 1000 | 1350 |
| RCDD-10 | 1000 | 300 | 250 | 6 | 70 | 3 | 4.5 | 2380 | 2750 | 1635 | 940 | 1250 | 1400 |
| RCDD-12 | 1200 | 350 | 300 | 8 | 70 | 3 | 4.5 | 3170 | 3000 | 1800 | 1010 | 1500 | 1700 |
| RCDD-14 | 1400 | 400 | 350 | 12 | 70 | 4 | 4.5 | 4800 | 3500 | 2050 | 1050 | 1850 | 2000 |
| RCDD-16 | 1600 | 450 | 400 | 14 | 70 | 4 | 4.5 | 6300 | 3900 | 2450 | 1180 | 2200 | 2350 |
| RCDD-18 | 1800 | 500 | 450 | 20 | 70 | 5.5 | 4.5 | 7800 | 4400 | 2850 | 1290 | 2500 | 2800 |
| Note: Other specifications can be customized ,please call for
further information. |
|
Product Introduction
RCDD series natural cooling self-unloading type electromagnetic
iron remover is a kind of iron remover used to automatically remove
impurity iron from powder or block non-magnetic materials. The
inner part of the machine is made of special resin for electrical
engineering, with self cooling and full sealing structure. The
utility model has the advantages of large magnetic permeability,
strong suction, dustproof, rainproof, corrosion-resistant,
automatic belt deviation correction, etc. It can still operate
reliably in extremely harsh environment."
Why Choose Us?
Safety, Magnetism Continue 30years Without Electric. Energy saving,
Above 95%.
The Clamping Force Can Be As nigh As More Than 20 Kg/cm2.
High Efficiency, Improve The efficiency of More Than 60%.
Very Easy to Use, Fast, Durable, Maintenance Free.
Processing Technology
1. Cnc Flame Cutting
2. Gantry Milling
3. Cnc Processing Centor
6. Coils and Magnetic Steel Assembly
5. Deburring and Cleaning
4. Drilling Machine
7. Magnetic Steel Commissioning
8. Electrical with Stand Voltage Detection
9. Epoxy Potting
10. Suction and Pull-out Force Test
11. Surface Grinder Finish Machining
12. Surface Magnetic Remanence (inspection)
13. Finished Product Electrical with Stand Voltage Detection
14. Finished Product Appearance Inspection
15. Packing List Inspection
16. Finished Package
