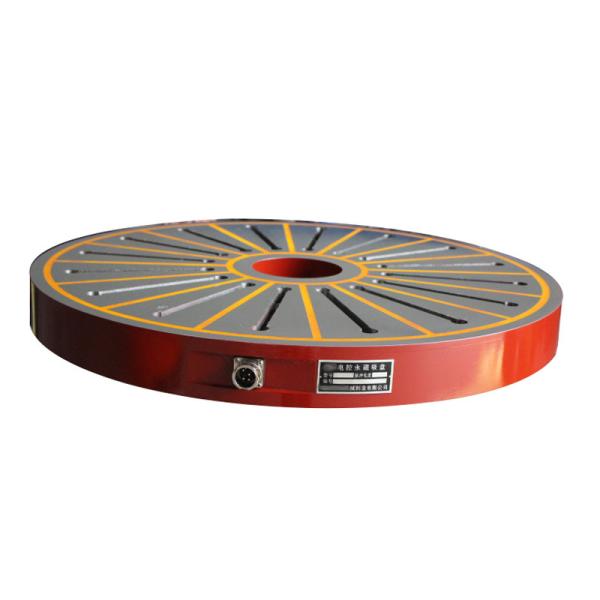

X71 circular electro permanent magnetic chuck
800mm Ic X71 Circular Electro Permanent Magnetic Chuck
Application Scenario
- Milling Machine
- Cnc Machine
- Quick Mold Changing System
- Parallel Machineing
Product Parameters
Model | Dimensions(MM) | Polar Number | Channel Number | Voltage (V) | Max RPM
[1/min] | Net WT (KG) | Overall size (CM) |
| φD | φd | H |
| X71-400 | 400 | 60 | 100 | 12 | 1 | 220/480 | 1000 | 98 | 50*50*20 |
| X71-500 | 500 | 60 | 100 | 12 | 1 | 220/480 | 800 | 150 | 60*60*20 |
| X71-600 | 600 | 80 | 100 | 12 | 1 | 220/480 | 650 | 220 | 70*70*20 |
| X71-700 | 700 | 80 | 110 | 12/16 | 2 | 220/480 | 600 | 290 | 80*80*22 |
| X71-800 | 800 | 120 | 110 | 12/16 | 2 | 220/480 | 500 | 390 | 90*90*22 |
| X71-1000 | 1000 | 200 | 120 | 16/24 | 2 | 220/480 | 400 | 660 | 110*110*22 |
| X71-1200 | 1200 | 250 | 120 | 16/24 | 2 | 220/480 | 320 | 950 | 130*130*22 |
| X71-1400 | 1400 | 300 | 130 | 18/24 | 4 | 220/480 | 260 | 1400 | 150*150*25 |
| X71-1600 | 1600 | 400 | 130 | 24/32 | 4 | 220/480 | 240 | 1850 | 170*170*25 |
| X71-1800 | 1800 | 500 | 130 | 24/32 | 4 | 220/480 | 160 | 2300 | 190*190*25 |
| X71-2000 | 2000 | 600 | 135 | 24/36 | 6 | 220/480 | 128 | 2900 | 210*210*26 |
| X71-2500 | 2500 | 800 | 135 | 36/48 | 8 | 220/480 | 100 | 4500 | 268*268*26 |
| X71-3000 | 3000 | 800 | 140 | 36/48 | 8 | 220/480 | 80 | 6800 | 318*318*26 |
| X71-3500 | 3500 | 1000 | 140 | 48/60 | 10 | 220/480 | 60 | 9500 | 368*368*26 |
Note: Other specifications can be customized ,please call for further information.
Suggestion: You can choose two installation methods (Quick plug/electric conductive slip ring). |
|
| Permanent Magnetic Chuck | Electromagnetic Magnetic Chuck | Electro Permanent Magnetic Chuck |
| Magnetic Source | Ndfeb | Coil and Core | Ndfeb Anico |
| Magnetic Force Principle | Internal Magnetic Fields | Constant Current | Conversion by Electronic Control Device |
| Usage | Manual | Electric Control Device | Electric Control Device |
| Precision | About 0.02-0 05 (the Error Increased Bysizes) | About 0.01-0.02 | About 0 002-0.005 |
| Potential Risk | Prone to Security Incidents | Prone to Security Incidents | Absolute Safety |
| Magnetic Regulation | Unable to Adjust | Electric Control Device to Adjustsuction | Electric Control Device to Adjust Suction |
| Suction | Small | Medium | Large |
| Residual Magnetism | More Remanence, Demagnetiz Ation Devicerequired | Less Remanence, Demagnetizationdevice Required | Automatic Demagnetiz Ation Withoutdemagnetization Device |
| Thermal Deformation | No | Continuous Power On, Heat Generationand Thermal Deformation | No |
| Applicable Workpiece | Thin and Small Workpieces | Thin and Small, Medium Sizedworkpieces | All Kinds of Workpieces |
| Application | Mainly Used for Grinding Machine | Mainly Used for Grinding Machine | For Grinding/milling/lathe Manchine and Soon. |
| Accessories | No | Electric Control Device | Electric Control Device |
| Serive Life | 3-5 Years | 6-10 Years | 20 Years |
Install and Use
INSTRALL
Fixed In Clamp Slot
Secure With Screw Holes
MAGNETIZATION STEPS
1. Plug in
2. Press the
magnetization button
3. Until the green light isalways on
4. Unplug the plug andciose the cover
DEMAGNETIZATION STEPS
1. Plug in
2. Press the demagnetization button
3. Until the red light isalways on
4. Unplug the plug andclose the cover
Why Choose Us?
Safety, Magnetism Continue 30years Without Electric. Energy saving,
Above 95%.
The Clamping Force Can Be As nigh As More Than 20 Kg/cm2.
High Efficiency, Improve The efficiency of More Than 60%.
Very Easy to Use, Fast, Durable, Maintenance Free.
MAGNETIC CLAMPING VS TRADITIONAL CLAMPING
| Suitable for clamping of various workpieces without deformation | Clamping tends to deform the workpiece |
| Uniform suction, improve processing accurcy | During the machining process, the workpiece generates vibrations,
which reduces the machining accuracy and the surface flatness. |
| Accurate positioning, convenient clamping | Difficult clamping and inaccurate positioning reduce work
efficiency |
| No interference position, workpieces can be f machined on five
sides at one time | clamping with processing interference positions, workpieces can not
be processed in one operation |
Processing Technology
1. Cnc Flame Cutting
2. Gantry Milling
3. Cnc Processing Centor
6. Coils and Magnetic Steel Assembly
5. Deburring and Cleaning
4. Drilling Machine
7. Magnetic Steel Commissioning
8. Electrical with Stand Voltage Detection
9. Epoxy Potting
10. Suction and Pull-out Force Test
11. Surface Grinder Finish Machining
12. Surface Magnetic Remanence (inspection)
13. Finished Product Electrical with Stand Voltage Detection
14. Finished Product Appearance Inspection
15. Packing List Inspection
16. Finished Package
Company Profile
As a professional designer and manufacturer ofmagnetic products
over 10 years, Wuxi Jiuyicheng Technology Company Limited is always providing customers appro-priate solutions to holding
and lifting materialduring machining progressing.
The huge range of our magnetic products includeElectro magnetic
chuck(EMC) series, Permanentmagnetic chuck(PMC) series, Electro
permanentmagnetic chuck(EPMC) series, Electro magneticlifter
(EML),.Permanent magnetic lifter(PM-L),Electro permanent magnetic
lifter (EPML),Iron remover, Demagnetizer, etc.
Magnet is widely used in industries like metallurgy, machinery,
shipbuilding, electric power, mine, automobile manufacturing, rail
transportation and so on.
There is mainly 3 kinds of magnet, permanent magnet, electromagnet,
permanent electromagnet. different magnet is suitable for different
areas, and as a professional supplier of magnetic tools, JYC
technology is is always providing customers appropriate solutions
for our customers.
