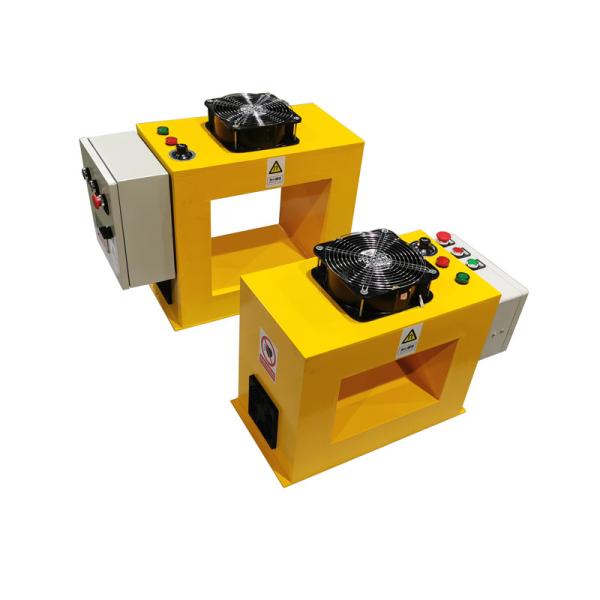

FTD Demagnetizer
Product Description:
1.Working principle:
According to the principle of electromagnetics, the frame structure
demagnetizer is designed with electromagnetic field. The
alternating magnetic field is generated in the coil of AC power
supply, and the track of hysteresis loop is smaller and smaller.
When the magnetic field strength is reduced to zero, the residual
remanence br in the work piece is close to zero, so as to achieve
the demagnetization effect. The use of capacitance compensation
technology can greatly reduce the operating power of the machine
and save energy.
2.Application:
It is widely used in occasions requiring ultrasonic cleaning and
electron beam welding, such as demagnetization of large-scale mold,
automobile parts, bearing parts, hydraulic parts, stamping parts,
hardware tool products, machining parts and other low coercive
materials.
Specification sheet
| Model | Dimensions (MM) | Frame size(mm) | electrified rate | magnetic intensities | Voltage (V) | Power(W) | Net WT(KG) |
| a2 | b2 | c | a1(width)×b1(height) |
| TCK-5 | 400 | 350 | 280 | 200x150 | 60.00% | 200Gs | ～220/380 | 5kw | 26kg |
| TCK-8 | 500 | 350 | 280 | 300x150 | 60.00% | 200Gs | ～220/380 | 8kw | 28kg |
| TCK-10 | 500 | 400 | 280 | 300×200 | 60.00% | 200Gs | ～220/380 | 10kw | 30kg |
| TCK-12 | 550 | 500 | 300 | 350×300 | 100.00% | 200Gs | ～220/380 | 12kw | 48kg |
| TCK-15 | 650 | 500 | 300 | 450x300 | 100.00% | 250Gs | ～220/380 | 15kw | 52kg |
| TCK-18 | 700 | 550 | 300 | 500x300 | 100.00% | 250Gs | ～220/380 | 18kw | 58kg |
| TCK-20 | 700 | 600 | 300 | 500x400 | 100.00% | 250Gs | ～220/380 | 20kw | 63kg |
| TCK-25 | Customized | Customized | 100.00% | 280Gs | ～220/380 | 25kw | ... |
| TCK-30 | Customized | Customized | 100.00% | 300Gs | ～220/380 | 30kw | ... |
| TCK-35 | Customized | Customized | 100.00% | 300Gs | ～220/380 | 35kw | ... |
| TCK-40 | Customized | Customized | 100.00% | 300Gs | ～220/380 | 40kw | ... |
| TCK-50 | Customized | Customized | 100.00% | 300Gs | ～220/380 | 50kw | ... |
| Note: Other specifications can be customized ,please call for further information. |
|
FAQ
Q:Are you manufactory or trade company.
A:We are both factory and trade company, we have lots of Cooperation factory with different quality and prices, just tell us
your need, there is always a product suitable for you.
Q:Where do you located:
A:JYC technology Co.,Ltd. located at Wuxi City, Jiangsu Province, 1
hour by fast rail way to Shanghai City.
Q:Production time:
A:Normally,We'll have regular items in stock, customized products
will take 7-14 work days.
Q:Payment term:
A:TT, credit card, L/C, Western Union, Paypal and so on, we accept all kinds of payment.
Q:What's your work time:
A:Normally, our work time is 9:00 AM to 17:00 PM Beijing time, but
if you have emergency, Please contact us freely at any time. Our salesman will sulove
your problem as soon as possible.
